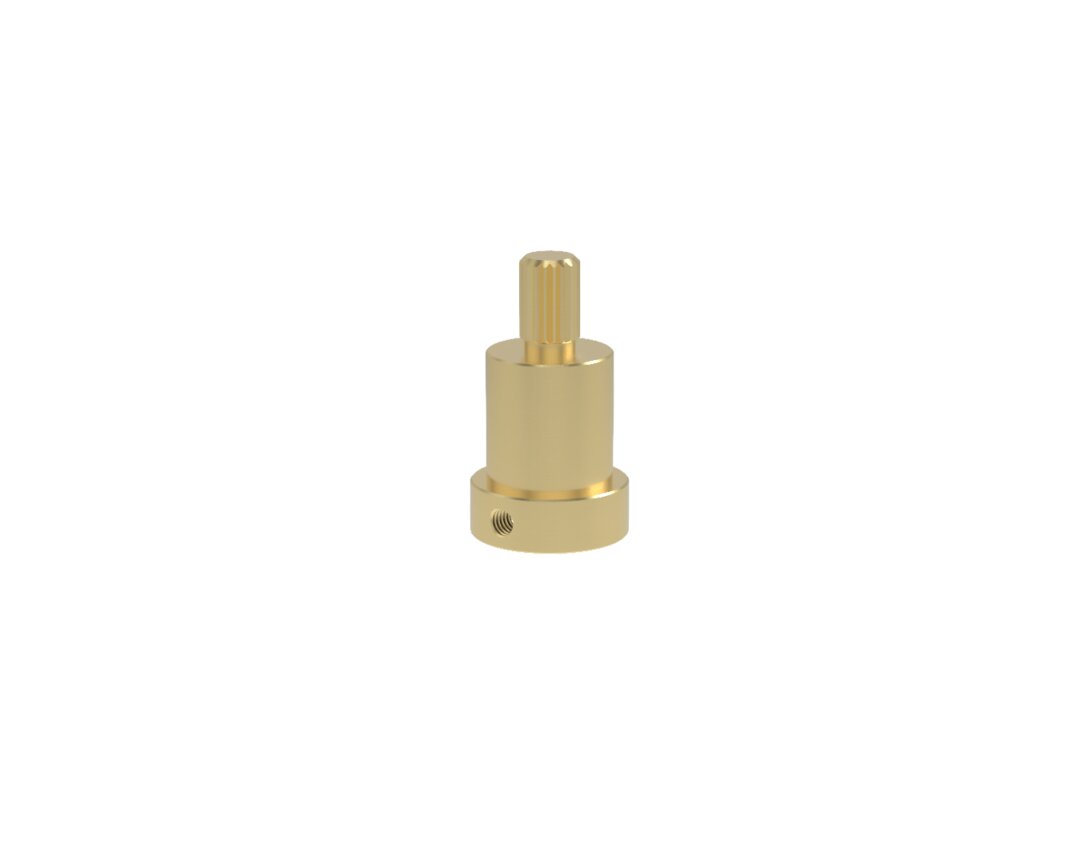

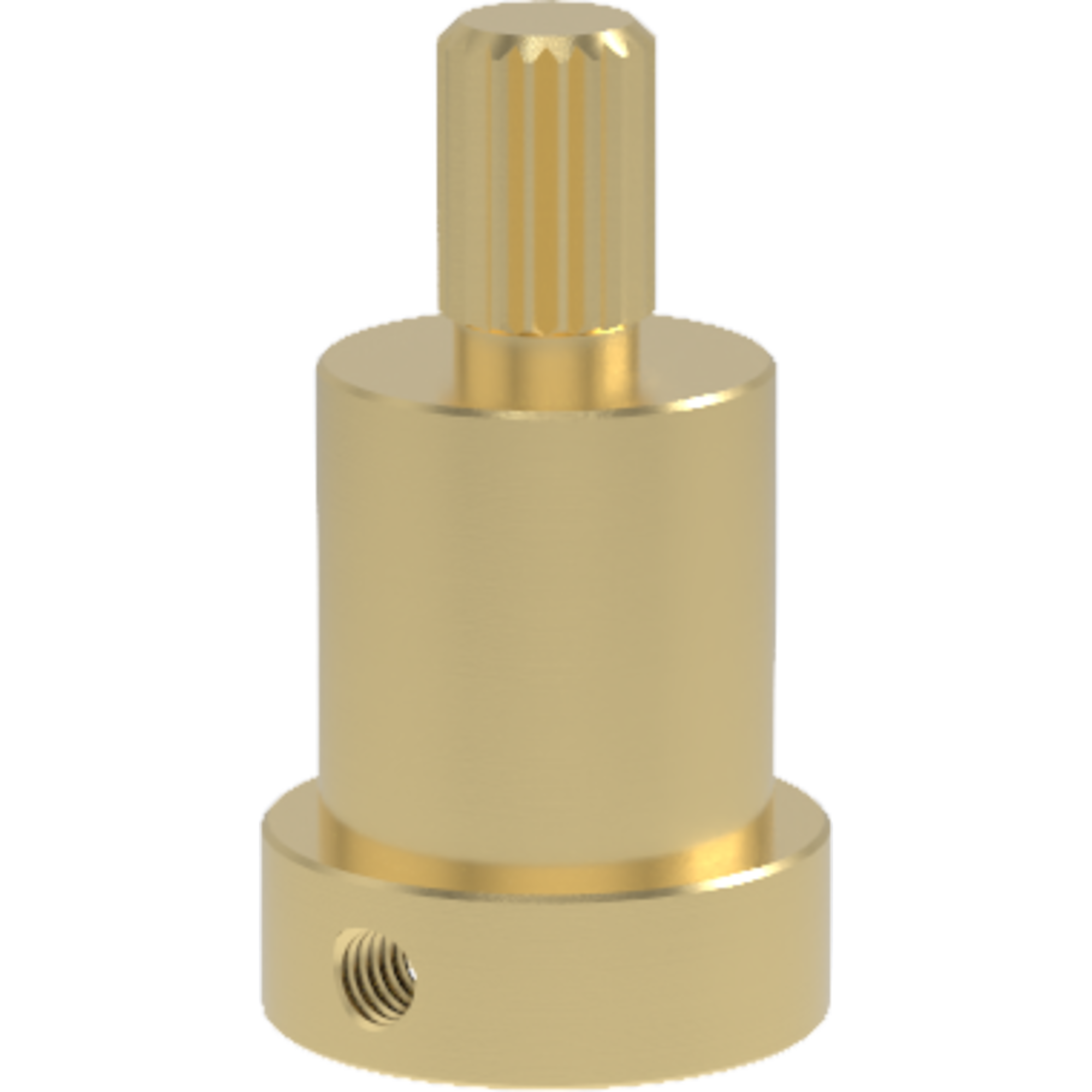

MIPRO090T
Adjustable broached extension
MIPRO090T
Adjustable broached extension

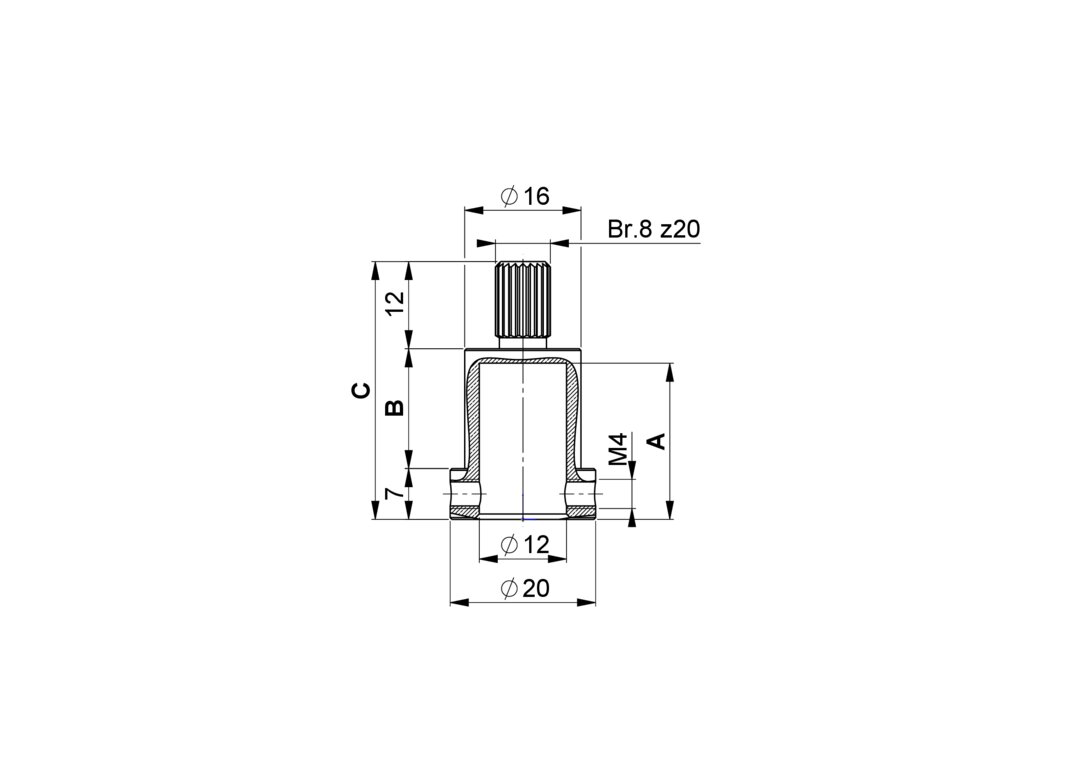

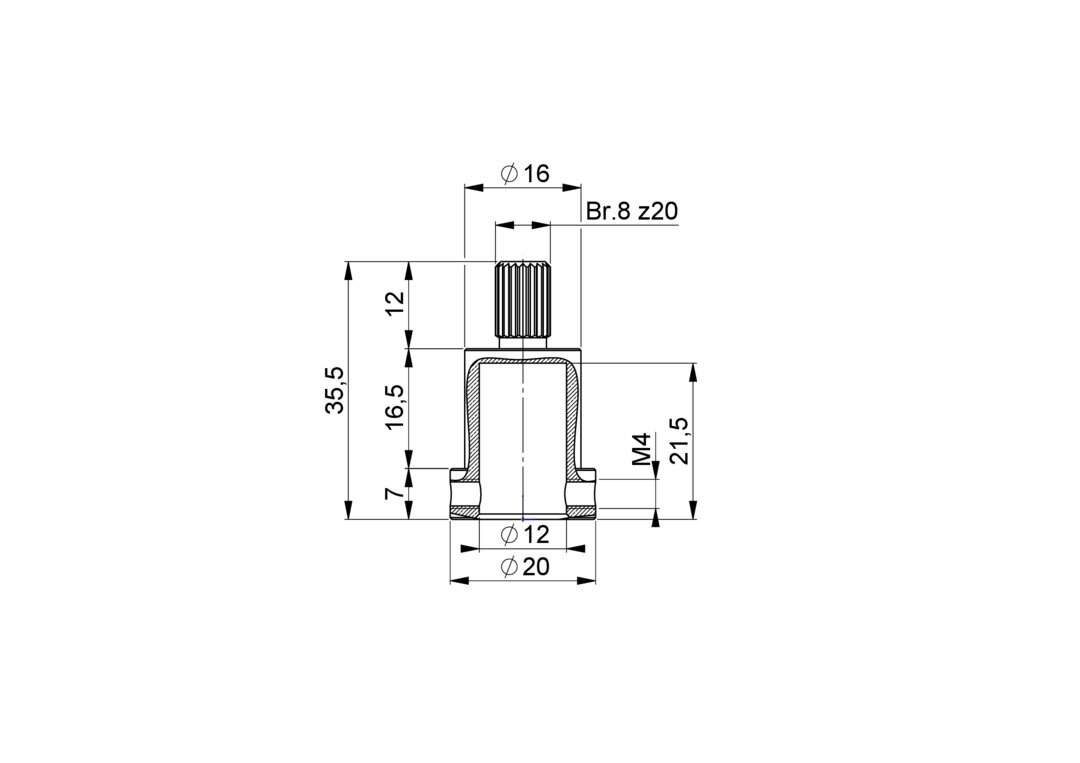

| Code | Material | Measure A | Measure B | Measure C | Diameter | Broach | Base | Availability |
|---|---|---|---|---|---|---|---|---|
| MIPRO090T | CW617N | 21,5 mm | 16,5 mm | 35,5 mm | ⌀ 16 mm | 8 z20 | 20 mm | |
| MIPRO115T | CW617N | 18,5 mm | 13,5 mm | 32,5 mm | ⌀ 16 mm | 8 z20 | 20 mm |
- Material
- CW617N
- Measure A
- 21,5 mm
- Measure B
- 16,5 mm
- Measure C
- 35,5 mm
- Diameter
- ⌀ 16 mm
- Broach
- 8 z20
- Base
- 20 mm
- Availability
- Material
- CW617N
- Measure A
- 18,5 mm
- Measure B
- 13,5 mm
- Measure C
- 32,5 mm
- Diameter
- ⌀ 16 mm
- Broach
- 8 z20
- Base
- 20 mm
- Availability
